About Wanner Hydra-cell high pressure seal-less pumps

The simple, durable design of Wanner Hydra-Cell high pressure diaphragm pumps make them able to handle fluids that can destroy other pumps. These positive displacement pumps give smooth, near pulse-free output accurately, reliably and repeatedly. Seal-less design means that non-lubricating solvents and liquids containing suspended particles can be pumped reliably at pressure in HPLC (High Performance Liquid Chromatography), ultrafiltration, nanofiltration, reverse osmosis and ultra-high pressure reverse osmosis systems.

BenefitsApplications
  • Reliably handles non-lubricating, abrasives, corrosives, and liquids with micron-sized particles
  • Extremely low pulse flow; no pulsation dampeners needed in most applications
  • Ultimate steady-state accuracy and controllability
  • Exceptionally wide adjustable flow range
  • Compact design, saving on installation space
  • Low shear pumping action
  • Boiler Feed
  • Machine Tool Cooling
  • Commercial Car Washing
  • High Pressure Chemical Transfer
  • Flow Chemistry
  • High Performance Liquid Chromatography (HPLC)
  • Low Pressure Liquid Chromatography (LPLC)

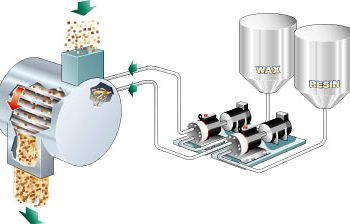

  • Transfer, Blending & Injection
  • Coating
  • Spray Drying
  • Clean in Place (CIP)

Industrial Pumps

Industrial Pumps

Wanner Hydra-Cell positive displacement diaphragm pumps feature a hermetically sealed pumping chamber so there are no seals, packing or cups to leak or replace. The seal-less design enables Hydra-Cell pumps to handle abrasives and particulates that would damage other types of pumps.

  • Multiple-diaphragm design provides virtually pulse-less, linear flow
  • Wide range of capacities from 0.4 to 595 l/min at pressures up to 345 bar
  • Can run dry indefinitely without damage to the pump
  • Heavy duty industrial construction for long service life in harsh conditions

More Info

Metering Pumps

Metering Pumps

Wanner Hydra-Cell metering pumps combine simple, elegant engineering with rugged construction to offer accurate metering and dosing with virtually pulse-less flow. With a hermetically sealed pumping chamber and hydraulically-balanced diaphragm design, the pumps provide leak-free, low-maintenance performance while processing difficult fluids over a wide range of pressures and flows.

  • Positive displacement with smooth, low pulse output
  • Electronic flow control for accuracy and reliability
  • Wide choice of construction materials for enhanced capability
  • Capacities from 0.227 lit/hr to 2600 lit/hr at discharge pressures up to 241 bar

More Info

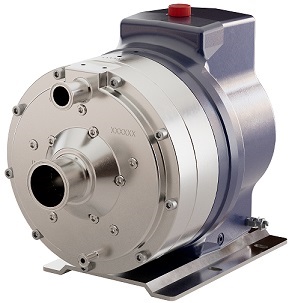

Pharma-Pro

Pharma-Pro

Critical for Flow Chemistry and HPLC applications, Wanner® Pharma-Pro™ pumps deliver an extremely low pulse flow – without the need for pulsation dampeners in most applications – with a precise, predictable and controllable flow rate for a consistent process.

More Info

Wanner Pump Servicing & Repair

Wanner Pump Servicing & Repair

We are provide expert repair, overhaul and servicing for all Wanner Hydra-Cell multi-diaphragm pumps. We use only genuine Wanner OEM-quality parts and industry-certified technicians.

Fast turnaround, full compliance, and reliable performance you can trust.

More Info

Real estate sector is blooming in a extremely fast pace because the human population is growing and there’s the requirement of homes and structures. Aside from it, these products, utilized in the development industry are directly or not directly an essential need for nearly every blooming industrial sector. These items are broadly required on the market because these actually the needs of assorted industrial sectors and accordingly are for sale to satisfy the application area. These items can be found in varied specifications as mentioned through the buyers because these have to be accurate in measurements to make sure excellent results.
