Chip Board Manufacturing High Pressure Pumps from Hydracell

Pumps from Hydracell are ideal for manufacturing of chip boards due to their seal-less design, so there are no seals, packing or cups to leak or replace

A large manufacturer of engineered wood was using highpressure gear pumps on its production lines to deliver abrasive, resinous glue to spray onto the wood fibers
of particle board. The gear pumps had to be replaced frequently, causing disruption at an early stage in the manufacturing process.

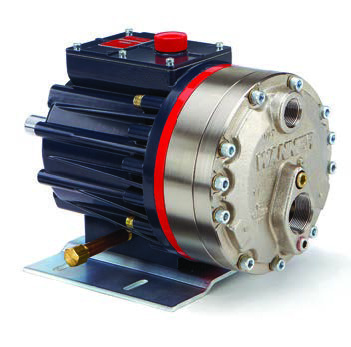

The company installed a Hydra-Cell model D35/G35 sealless pump, and after six months of trouble-free operation, installed another D35/G35.

Further encouraged by its performance, a Hydra-Cell D10/G10 was subsequently installed on another system to pump Ammonia Nitrate.
After more than a year, all three pumps were running without any problems – oil changes being the only maintenance required.

This has significantly decreasedoperating costs and production downtime.

Hydra-Cell® Diaphragm Pump Advantages

• The seal-less nature of the Hydra-Cell diaphragm pumps enable charged and dirty liquids to be processed without need for fine filtration to protect the diaphragm pump.
• The Hydra-Cell diaphragm pump needs little maintenance and can operate at continuous duty at high pressure.
• Pulsation is low, so dampeners may not be required for most Hydra-Cell® diaphragm pumps.
• Hydra-Cell® diaphragm pumps can handle solids up to 500 microns, or more. They can be pumped without fine filtration. System costs are reduced and maintenance is simplified.
• Most diaphragm pumps in the Hydra-Cell® diaphragm pump range can operate at any pressure from <1 bar up to at least 70 bar. Some models up to 170 bar.
• Seal-less design distinguishes the Hydra-Cell® diaphragm pumps from other diaphragm pumps and is the basis of its long service life – many of the liquids pumped are harmful to pump seals. The Hydra-Cell® diaphragm pumps are tolerant of small solids, resistant to chemical and corrosive attack.
